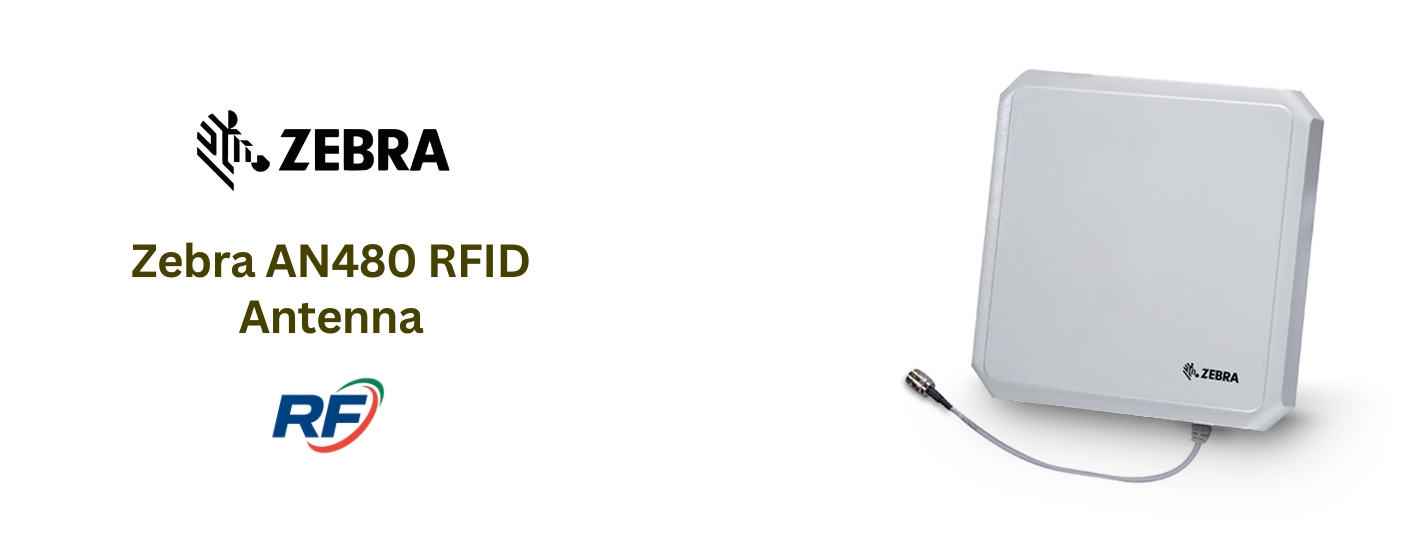

Zebra AN480 RFID Antenna – High Performance, Global Flexibility
The Zebra AN480 RFID Antenna is a versatile, high-performance solution designed to maximize the efficiency and reliability of your RFID system. Built for global deployment, the AN480 supports a wide range of environments and applications, from warehouses and manufacturing plants to retail backrooms and loading docks.
Whether you’re tracking pallets, cartons, or individual items, the Zebra AN480 provides the wide area coverage, superior read rates, and rugged durability needed to ensure peak RFID performance.
🛠️ Key Features
Wide Frequency Range: Supports global UHF RFID frequency (865–956 MHz) High Gain (6 dBi): Enables long-range and accurate tag reads Low VSWR & Axial Ratio: Delivers high signal clarity and performance Slim, Low-Profile Design: Fits easily into tight spaces or behind fixtures Rugged Build: IP54-rated housing for indoor & light industrial use Right-Hand Circular Polarization: Ideal for dynamic tag orientations
🔧 Technical Specifications
| Feature | Specification |
|---|---|
| Frequency Range | 865 MHz – 956 MHz (Global) |
| Gain | 6 dBi |
| Polarization | Right-hand circular |
| VSWR | < 1.3:1 |
| Axial Ratio | ≤ 3 dB |
| Connector | Type N Female |
| Beamwidth | 68° Elevation / 68° Azimuth |
| Dimensions | 25.9 cm × 25.9 cm × 3.3 cm (10.2" × 10.2" × 1.3") |
| Weight | 1.13 kg (2.5 lbs) |
🎯 Ideal Applications
- Dock Door Portals
- Conveyor Belt Systems
- Retail POS & Smart Shelving
- Inventory and Asset Tracking
- Backroom or Warehouse Management
- RFID Gates & Tunnels
📦 Why Choose the Zebra AN480?
The Zebra AN480 antenna offers outstanding read range, rugged reliability, and global frequency compatibility, making it a top choice for businesses expanding their RFID capabilities. It integrates seamlessly with fixed readers like the Zebra FX9600 and FX7500, ensuring real-time visibility in complex workflows.
